Re: Doing the LPG conversion; My full report

#41 Post by Gilbertd » Tue Jul 20, 2010 8:38 am

john_d wrote:its a matter of common sense when you see the colours of the wires
Something he's already proved he doesn't have a lot of.....

The manual for the OMVL system can be found at http://www.vogelsautogas.nl/documenten/ ... eiding.pdf
It's in Dutch but you only need use Google translator to get the colours right.
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#42 Post by Toolless » Tue Jul 20, 2010 11:31 pm

Gilbertd wrote: The manual for the OMVL system can be found at http://www.vogelsautogas.nl/documenten/ ... eiding.pdf
It's in Dutch but you only need use Google translator to get the colours right.
This manual has better wiring schematics then the other
But try and translate anything ells like some of the components gives you dobble dutch

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#43 Post by Toolless » Tue Jul 20, 2010 11:40 pm

I dont understand what the Bank 1 and Bank 2 is
What is that thing in the top left that looks like a radio
And I presume the things under that are our LPG injectors and on the bottom right those are the cars injectors

Is the pressure sensor at the top right of the page our map sensor?
What is that thing under neith it that looks like a microwave
And thet oval thing under that?

Gilbertd
Advanced Member
Posts: 8036
Joined: Wed Apr 09, 2008 10:00 am
Location: Peterborough

Re: Doing the LPG conversion; My full report

#44 Post by Gilbertd » Wed Jul 21, 2010 12:18 am

Toolless wrote:I dont understand what the Bank 1 and Bank 2 is
What is that thing in the top left that looks like a radio
And I presume the things under that are our LPG injectors and on the bottom right those are the cars injectors

Is the pressure sensor at the top right of the page our map sensor?
What is that thing under neith it that looks like a microwave
And thet oval thing under that?
That diagram is for a V8, look on the next page for a 4 cylinder install. Other than the injectors, the rest is the same.
The thing that looks like a radio also looks remarkably like a battery....
The things under that are the petrol injectors and the things at bottom right are the gas injector rails (but as you are fitting to a 4 cylinder car, you'll only have one of them...)
Yes, the pressure sensor is the Map sensor and if you look carefully it even tells you where the pipes go.
You have some very odd looking microwaves where you come from, it looks more like a gas changeover switch to me, possibly because that's what it is.
That oval thing is the big aluminium oval thing you bolted (or in your case, should have bolted but you probably used tie wraps, chewing gum and a bit of wet string) under your bonnet, it's the vaporiser.`

and before you ask, blauw and zwart going to the vaporiser and the tankkraan are the blue and black wires that go to your tank and vaporiser solenoids.

Question for the mods. Is Dickhead an acceptable word to use on this forum or should I find a suitably derogatory but less offensive word to refer to Mr Toolless?
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#45 Post by Toolless » Wed Jul 21, 2010 12:58 am

Gilly wrote: Question for the mods. Is Dickhead an acceptable word to use on this forum or should I find a suitably derogatory but less offensive word to refer to Mr Toolless?
how noble of you sir
I do hope you will be taking this all back and eating your own hat once I get the system running that is

Gilly wrote: and before you ask, blauw and zwart going to the vaporiser and the tankkraan are the blue and black wires that go to your tank and vaporiser solenoids.
But what dose it do

Gilly wrote: it looks more like a gas changeover switch to me, possibly because that's what it is.
Is that the on/off switch to fit inside the cab

Is that little circle under the vaporizer the tank solenoid
And what is that thing above the battery that looks like a police siren
And why a pair of scissors

User avatar
john_d
Site Admin
Posts: 1555
Joined: Fri Oct 14, 2005 7:12 pm
Location: Cardenden, Fife

Re: Doing the LPG conversion; My full report

#46 Post by john_d » Wed Jul 21, 2010 7:13 am

Toolless wrote:I dont understand what the Bank 1 and Bank 2 is
thats an 8 cyl. you want 4
Toolless wrote:What is that thing in the top left that looks like a radio
you mean to right? thats the gas loom-to-gas ecu plug
Toolless wrote:And I presume the things under that are our LPG injectors and on the bottom right those are the cars injectors
petrol on the left, gas on the right
Toolless wrote:Is the pressure sensor at the top right of the page our map sensor?
What is that thing under neith it that looks like a microwave
And thet oval thing under that?
yes
changeover switch
looks like the reducer


english translation http://translate.google.com/translate?j ... l=nl&tl=en
Subaru Impreza WRX

User avatar
john_d
Site Admin
Posts: 1555
Joined: Fri Oct 14, 2005 7:12 pm
Location: Cardenden, Fife

Re: Doing the LPG conversion; My full report

#47 Post by john_d » Wed Jul 21, 2010 7:24 am

Toolless wrote:But what dose it do
turns the gas on and off
Toolless wrote:Is that the on/off switch to fit inside the cab
well its no good under the bonnet
Toolless wrote:Is that little circle under the vaporizer the tank solenoid
looks like the gas level sender (or no gas buzzer)

Toolless wrote:And what is that thing above the battery that looks like a police siren[\quote]

thats the plug that connects it to your laptop
Subaru Impreza WRX

Gilbertd
Advanced Member
Posts: 8036
Joined: Wed Apr 09, 2008 10:00 am
Location: Peterborough

Re: Doing the LPG conversion; My full report

#48 Post by Gilbertd » Wed Jul 21, 2010 11:17 am

Does this now make sense? I will eat my hat not only when it is running properly but when you post up a scan of the safety certificate after it has one because I honestly doubt it will ever get one.
Attachments
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#49 Post by Toolless » Wed Jul 21, 2010 3:16 pm

Nice photo
But I dont have the program controler that plugs into PC
Its a small COM port right?

What is with the pair of scissors next to the Lambda sensor

Is the tank level switch the fuel gauge

What is that little thing that goes off to the petrol injectors

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#50 Post by Toolless » Wed Jul 21, 2010 3:31 pm

Hear is my Labdrasensor next to the cat

It says purple to the lambda sensor but on mine i have
2 white wire
1 black and
1 gray

Gilbertd
Advanced Member
Posts: 8036
Joined: Wed Apr 09, 2008 10:00 am
Location: Peterborough

Re: Doing the LPG conversion; My full report

#51 Post by Gilbertd » Wed Jul 21, 2010 3:59 pm

Toolless wrote:Nice photo
But I dont have the program controler that plugs into PC
Its a small COM port right?
You need one of these so you can connect your computer to the LPG system. http://cgi.ebay.co.uk/Omvl-Dream-xxIN-L ... 53e26d7937
Toolless wrote:What is with the pair of scissors next to the Lambda sensor
To signify that you cut the grey wire off as it isn't needed and is not connected to anything.
Toolless wrote:Is the tank level switch the fuel gauge
No, the fuel gauge is in the switch that goes on your dash, it is the tank level sender that is driven from the gauge on the tank.
Toolless wrote:What is that little thing that goes off to the petrol injectors
It is a loom with 4 male and 4 female plugs. You uplug the existing ones from the existing petrol injectors and plug these into the loom. Then you plug the other ones from the loom onto the petrol injectors. Just make sure you get them correct, cylinder 1 to cylinder 1, cylinder 2 to cylinder 2, etc.

The 4 wires on the lambda sensor are two white wires for the heater, the grey one is signal earth and the black one is signal output. The purple wire from the LPG system connects to the black wire on the lambda sensor so it picks up the signal output. Just strip a bit of the insulation off and solder the purple wire to it (as I'm sure you are aware that all wiring on an LPG installation must be soldered and properly jnsulated, twisted joints or crimp connectors will fail the safety test)
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

User avatar
john_d
Site Admin
Posts: 1555
Joined: Fri Oct 14, 2005 7:12 pm
Location: Cardenden, Fife

Re: Doing the LPG conversion; My full report

#52 Post by john_d » Wed Jul 21, 2010 9:30 pm

Toolless wrote:It says purple to the lambda sensor but on mine i have
2 white wire
1 black and
1 gray
its purple from the gas loom, not the engine
Subaru Impreza WRX

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#53 Post by Toolless » Wed Jul 21, 2010 10:39 pm

Gilbertd wrote:You need one of these so you can connect your computer to the LPG system. http://cgi.ebay.co.uk/Omvl-Dream-xxIN-L ... 53e26d7937
do you mean this

Gilbertd wrote:it is the tank level sender that is driven from the gauge on the tank
so there a proper float inside that tank like a petrol fuel tank


Hear is a photo of my ignitioncoil
It has colors red/grn blk grn/yel
Which one connects to the system
Gilbertd wrote: It is a loom with 4 male and 4 female plugs. You uplug the existing ones from the existing petrol injectors and plug these into the loom. Then you plug the other ones from the loom onto the petrol injectors. Just make sure you get them correct, cylinder 1 to cylinder 1, cylinder 2 to cylinder 2, etc.
is this what you mean
Although it dose not say the colors are as followed from the diagram
A red wht/brn: B red blu/wht: C red wht/red: D blk/wht
From the diagram we have no idea what color wires are for the cars and the LPG injection system
The colors for my injectors off my engine from D/S to O/S are
blk blk/brn: blk red/brn: blk grn/brn: blk yel/brn
Which wires do I connect to the system
but of corce we need to know what bloody color wire connect to them as diagram dose not say

Well hear are the spare wires I have from wiring loom from the kit
blu blu/blk red red/wwt red/blk grn grn/blk yel yel/blk
Do they make any sense to you

And found a fuse for my kit
But not in the diagram above dose not have a fuse on

What this manual rely needs is a dam good wiring schematic
In any language we would all be able to see what was going on instead of playing inspector cluedo
especially when its in Dobble Dutch


quote="Gilbertd"]You need one of these so you can connect your computer to the LPG system. http://cgi.ebay.co.uk/Omvl-Dream-xxIN-L ... 53e26d7937[/quote]
do you mean this

Gilbertd wrote:it is the tank level sender that is driven from the gauge on the tank
so there a proper float inside that tank like a petrol fuel tank


Hear is a photo of my ignition coil
It has colors red/grn blk grn/yel
Which one connects to the system
Gilbertd wrote: It is a loom with 4 male and 4 female plugs. You uplug the existing ones from the existing petrol injectors and plug these into the loom. Then you plug the other ones from the loom onto the petrol injectors. Just make sure you get them correct, cylinder 1 to cylinder 1, cylinder 2 to cylinder 2, etc.
is this what you mean
Although it dose not say the colors are as followed from the diagram
A red wht/brn: B red blu/wht: C red wht/red: D blk/wht
From the diagram we have no idea what color wires are for the cars and the LPG injection system
The colors for my injectors off my engine from D/S to O/S are
blk blk/brn: blk red/brn: blk grn/brn: blk yel/brn
Which wires do I connect to the system
but of corce we need to know what bloody color wire connect to them as diagram dose not say

Well hear are the spare wires I have from wiring loom from the kit
blu blu/blk red red/wwt red/blk grn grn/blk yel yel/blk
Do they make any sense to you

And found a fuse for my kit
But not in the diagram above dose not have a fuse on

What this manual rely needs is a dam good wiring schematic
In any language we would all be able to see what was going on instead of playing inspector cluedo
especially when its in Dobble Dutch

Gilbertd
Advanced Member
Posts: 8036
Joined: Wed Apr 09, 2008 10:00 am
Location: Peterborough

Re: Doing the LPG conversion; My full report

#54 Post by Gilbertd » Wed Jul 21, 2010 11:25 pm

Toolless wrote:
Gilbertd wrote:You need one of these so you can connect your computer to the LPG system. http://cgi.ebay.co.uk/Omvl-Dream-xxIN-L ... 53e26d7937
do you mean this
That is the socket that you plug the programming interface into. The interface then plugs into your computer and you run the programming software to set the system up.
Toolless wrote:so there a proper float inside that tank like a petrol fuel tank
Yes, it drives the gauge on the tank which also provides an electrical signal to drive the gauge on the dash changeover switch.
Toolless wrote:Hear is a photo of my ignitioncoil
It has colors red/grn blk grn/yel
Which one connects to the system
You'll need to check with a meter but it looks like you have a wasted spark system so it is actually 2 coils in one package each driving 2 cylinders. With the ignition on one of the wires will have permanent 12 volts on it and you connect to one of the others to pick up the ignition pulses. When you set the system up using the adapter and software, you'll have to tell the LPG ECU what ignition system it is connected to.
Toolless wrote:

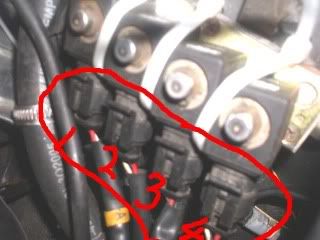

Gilbertd wrote: It is a loom with 4 male and 4 female plugs. You uplug the existing ones from the existing petrol injectors and plug these into the loom. Then you plug the other ones from the loom onto the petrol injectors. Just make sure you get them correct, cylinder 1 to cylinder 1, cylinder 2 to cylinder 2, etc.
is this what you mean
No, that picture shows the gas injector rail which is already connected to the loom.
Toolless wrote:The colors for my injectors off my engine from D/S to O/S are
blk blk/brn: blk red/brn: blk grn/brn: blk yel/brn
Which wires do I connect to the system
but of corce we need to know what bloody color wire connect to them as diagram dose not say
Of course it doesn't. Because if you had removed the kit properly you wouldn't need to know the colours, you would have the 4 male and 4 female plugs to connect to the injectors rather than a bundle of chopped off wires.
Toolless wrote:And found a fuse for my kit
But not in the diagram above dose not have a fuse on
Probably because the manufacturers know that anyone fitting the kit would follow the Code of Practice which says it should be fused. The same as the fuse that you would normally fit in the blue wire feed to the solenoids isn't shown on the diagram either.
Toolless wrote:What this manual rely needs is a dam good wiring schematic
In any language we would all be able to see what was going on instead of playing inspector cluedo especially when its in Dobble Dutch
The diagram is perfect. It tells you exactly which wire goes where. Of course it assumes you have a full kit and not something that has been ripped out of a car by someone that hasn't a clue what is what.
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

Gilbertd
Advanced Member
Posts: 8036
Joined: Wed Apr 09, 2008 10:00 am
Location: Peterborough

Re: Doing the LPG conversion; My full report

#55 Post by Gilbertd » Wed Jul 21, 2010 11:33 pm

Toolless wrote:Well hear are the spare wires I have from wiring loom from the kit
blu blu/blk red red/wwt red/blk grn grn/blk yel yel/blk
Do they make any sense to you
The blue and blue/black, red and red/black, green and green/black, yellow and yellow/black are the connections to the four petrol injectors. Unfortunately as you've chopped them off rather than leaving the plugs on them, you have no way of knowing which pair goes to which cylinder. The red/white is for something else and you should know from the notes you took when you removed the kit from the other car where that goes.
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

rossko
Installer
Posts: 8094
Joined: Wed May 23, 2007 6:51 pm
Location: Wiltshire

Re: Doing the LPG conversion; My full report

#56 Post by rossko » Thu Jul 22, 2010 1:08 am

Toolless wrote:blu blu/blk red red/wwt red/blk grn grn/blk yel yel/blk
Do they make any sense to you
Yes.
Fully detailed in a proper schematic that you chose not to make sense of, about ten posts ago.
Toolless wrote:And found a fuse for my kit
But not in the diagram above dose not have a fuse on
That would be the part marked "15A" in the the diagram above. You must have spent ages trying to find something on it that hadn't been annotated in English for you, so that you could complain about the spoon-feeder.
www.blazegas.com

User avatar
john_d
Site Admin
Posts: 1555
Joined: Fri Oct 14, 2005 7:12 pm
Location: Cardenden, Fife

Re: Doing the LPG conversion; My full report

#57 Post by john_d » Thu Jul 22, 2010 7:17 am

Toolless wrote:Well hear are the spare wires I have from wiring loom from the kit
you should'nt have any "spare" wires, do you think the manufactuer had some loose wire laying about and just decided to throw it on a kit?

the middle wire on the coil is the live, not sure about the other 2
Subaru Impreza WRX

Gilbertd
Advanced Member
Posts: 8036
Joined: Wed Apr 09, 2008 10:00 am
Location: Peterborough

Re: Doing the LPG conversion; My full report

#58 Post by Gilbertd » Thu Jul 22, 2010 8:57 am

Remember this diagram? You posted it and the colours all match.

By the way, your fuel gauge will not read correctly and the tank will not fill or empty properly unlss it is installed at the correct angle. Which it wasn't the last time you posted a picture of it.....
Attachments
'96 Saab 900XS, AEB Leo, sold
'93 Range Rover 4.2 LSE, Lovato LovEco, sold
'98 Ex-Police Range Rover 4.0, Singlepoint AEB Leo, my daily motor
'97 Range Rover 4.0SE, eGas multipoint, a project.....

Proud to be a member of the YCHJCYA2PDTHFH club.

Toolless
New member
Posts: 134
Joined: Sat Jun 05, 2010 4:09 pm
Location: Up my own ass

Re: Doing the LPG conversion; My full report

#59 Post by Toolless » Thu Jul 22, 2010 4:38 pm

Gilbertd wrote: You'll need to check with a meter but it looks like you have a wasted spark system so it is actually 2 coils in one package each driving 2 cylinders. With the ignition on one of the wires will have permanent 12 volts on it and you connect to one of the others to pick up the ignition pulses. When you set the system up using the adapter and software, you'll have to tell the LPG ECU what ignition system it is connected to.
Are you saying i'm a wire short of a picknick and only 3 of my cylenders run?!!!??
Gilbertd wrote: Of course it doesn't. Because if you had removed the kit properly you wouldn't need to know the colours, you would have the 4 male and 4 female plugs to connect to the injectors rather than a bundle of chopped off wires.

The blue and blue/black, red and red/black, green and green/black, yellow and yellow/black are the connections to the four petrol injectors. Unfortunately as you've chopped them off rather than leaving the plugs on them, you have no way of knowing which pair goes to which cylinder. The red/white is for something else and you should know from the notes you took when you removed the kit from the other car where that goes.

I did but it got a bit damaged later on
One is marked in green with 3 pins making 5 plugs in total but it has no wires to it so I dont know what it dose
The colors for the above are as follows
first plug blu/red red/why yel
plug with 3 pins no wires
2nd plug blu/red grn
3rd plug blu/red red
4th plug blu/red blue


Dont know what this one dose

Its all wired up into the ECU but I dont see the cars ecu on the diagram

rossko
Installer
Posts: 8094
Joined: Wed May 23, 2007 6:51 pm
Location: Wiltshire

Re: Doing the LPG conversion; My full report

#60 Post by rossko » Thu Jul 22, 2010 5:23 pm

The answers are all in the diagram that you first posted here yourself, and has since been reposted again.
The strip of plastic with connectors on it is part of the scrap car you stripped, and did not come from OMVL.
The car's ECU does not appear in the OMVL diagrams, nor does it need to. The OMVL diagrams will not tell you the colour of the wires that are part of the car.
www.blazegas.com

Post Reply
